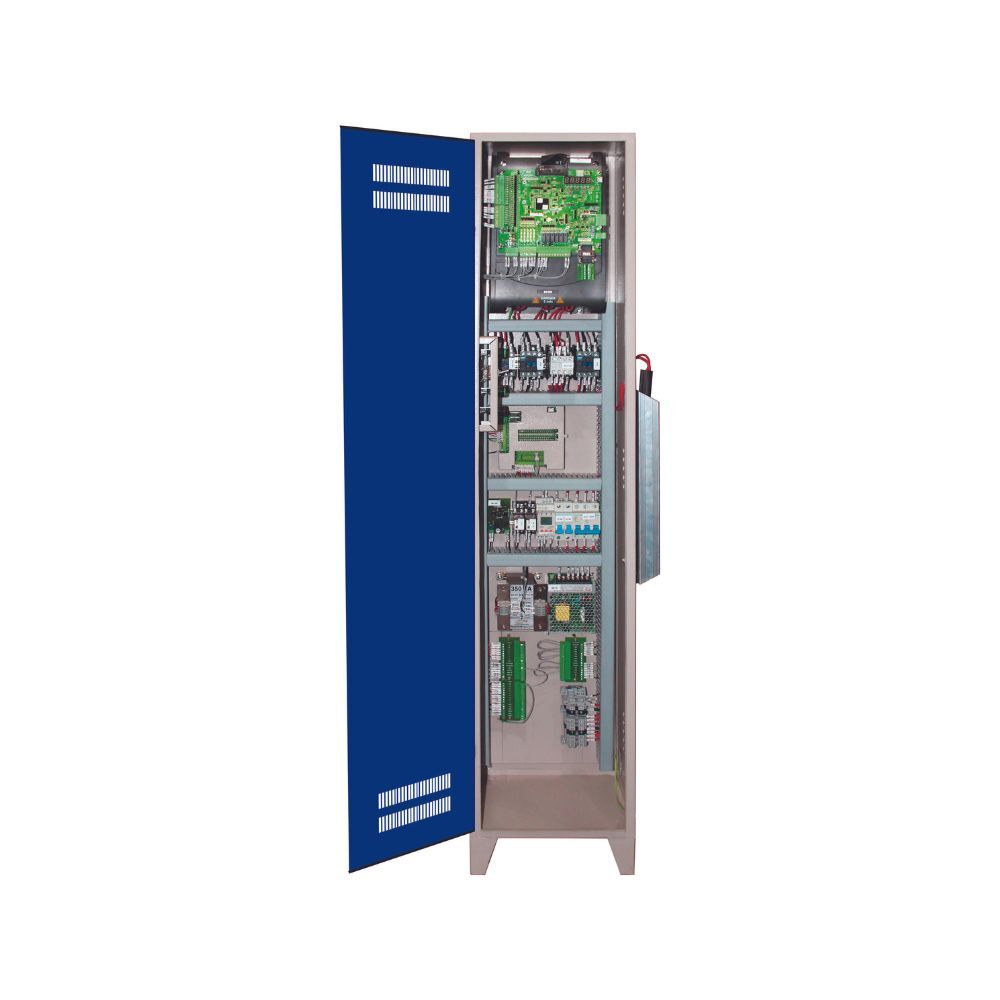

Galaxy EC160 MRL Lift Controller – Multi-Mode Smart Panel
The Galaxy Integrated EC160 MRL Lift Control Panel is a versatile and intelligent elevator controller designed for Machine Room-Less applications. This all-in-one solution supports various system configurations including serial, semi-serial, semi-parallel, and parallel, offering flexibility in installation. It can operate up to 64 floors with a maximum speed of 6 m/s, making it suitable for high-rise buildings.
With advanced features like automatic fault logging, shaft learning, smooth ride control, and programmable logic, the EC160 ensures safe, efficient, and convenient lift operation. It also supports group control for up to 8 lifts, making it ideal for commercial and residential use.
Features of Integrated EC160 MRL Lift Control Panel
- Dual door operation
- Works in serial, semi-serial, semi-parallel & parallel setups
- Floor capacity up to 64 floors
- Max. speed: 6 m/s
- 220V AC UPS input for emergency evacuation
- Automatic identification between short-floors
- 30 fault codes with actual date & time display
- Shaft position learning as standard
- Direct-to-floor landing with smooth travel
- Optional card for advanced door opening & re-leveling
- Dot Matrix/LCD display for floor indication
- Wide door function controls (including freight lifts)
- Quick start-up with pre-factory default parameters
- User programmable input/output settings
- Supports auto and manual doors
- Group control support for up to 8 lifts with GCL Card
Benefits of Galaxy Integrated EC160 MRL Lift Control Panel
- Multi-system compatibility in one controller
- Designed for high-rise buildings
- Easy fault diagnostics with timestamped logs
- Smooth ride and quick leveling
- Saves installation time with default factory settings
- Safe and fast evacuation during power failure
- Versatile control for all lift door types
- Supports synchronized lift operation in groups
Specification of Galaxy Integrated EC160 MRL Lift Control Panel
- Operation Type: Serial, Semi-Serial, Semi-Parallel & Parallel
- Door Type: Dual door (Auto & Manual)
- Floor Support: Up to 64 Floors
- Speed: Max. 6 m/s
- Power Backup: 220V AC UPS Input
- Display Type: Dot Matrix / LCD
- I/O: Fully user-programmable
- Group Control: Up to 8 Lifts (with GCL Card)
